Reinforced stone floor drain trap that blends with tiles
INTERIORS

Floor Drains

Jonite’s homogenous stone floor drains can match any tile to form a trap cover, achieving desired coherence with functional designs. We aim to continue designing floor drains that blend seamlessly into any flooring.

  • Modern aesthetics
  • Easy to maintain
  • Extreme strength and durability
  • Prevents foul smells and insects
  • Special PVC strainers and restrainers fitted



Loading Specifications

5KN
  • Some Jonite products are built for pedestrian usage
  • Jonite incorporates ADA-certified grates in our range of products for greater accessibility

Strictly for pedestrian application only

Aesthetically Pleasing and Functional Bathroom Floor Drains

Once considered a luxury only for the rich in ancient Rome, the toilet or WC has become a common and necessary sight in the modern home. Many designers focus on various fixtures to provide comfort for their clients, but the humble floor drain is often overlooked.

At Jonite, we provide custom floor drains so you can cohesively blend these elements into commercial and residential spaces for an eye-catching, stylish appearance. You’ll receive perfectly fitted PVC strainers and restrainers when you personalize your design in your choice of shapes, sizes and patterns.

Read more Show less
Ivory White Ivory White
Wacky White Wacky White
Rosy Beige Rosy Beige
Desert Beige Desert Beige
Champagne Yellow Champagne Yellow
Terracotta Red Terracotta Red
Teak Brown Teak Brown
Mocca Brown Mocca Brown
Granite Grey Granite Grey
Ash Grey Ash Grey
Steel Grey Steel Grey
Slate Grey Slate Grey
Bamboo Green Bamboo Green
Smoky Green Smoky Green
Charcoal Black Charcoal Black
Ebony Black Ebony Black

Superior Benefits of Jonite Bathroom Floor Drains

The strong materials of our drains provide high performance in bathroom settings. The designs include 95% natural aggregate and advanced hybrid polymers for impressive durability. With a luxurious finish, they offer the following advantages:

  • Modern aesthetics: Jonite floor drains are available in a wide range of standard colors developed to assist landscape architects in quickly picking the color they need. More specialized colors are also possible with our color customization process, allowing any hue or shade desired.
  • Easy to maintain: Adding floor drains and point drains is not only necessary, but also considered a great design because it enables easy toilet maintenance. Stagnant water in the toilets can damage the flooring in the long term and become a hotspot for mosquito breeding in the tropics. Good floor drains can prevent stagnant water from pooling up and can allow for some stains to be cleansed and removed.
  • Extreme strength and durability: Jonite floor drains are engineered to fulfill crucial functions while remaining an integral component of the structural floor. Our most popular series is the Tile Up collection of durable, high-performance materials where any tile can be used to create a seamless look and feel throughout the bathroom.
  • Prevents foul smells and insects: Waterproofing is foremost in our floor drain cover designs, as is the prevention of infiltration by insects and foul air. Special PVC strainers and restrainers fitted with our floor drain traps work to achieve a cleaner environment, giving bathroom users a more pleasant and hygienic experience.
Read more Show less

COLLECTIONS

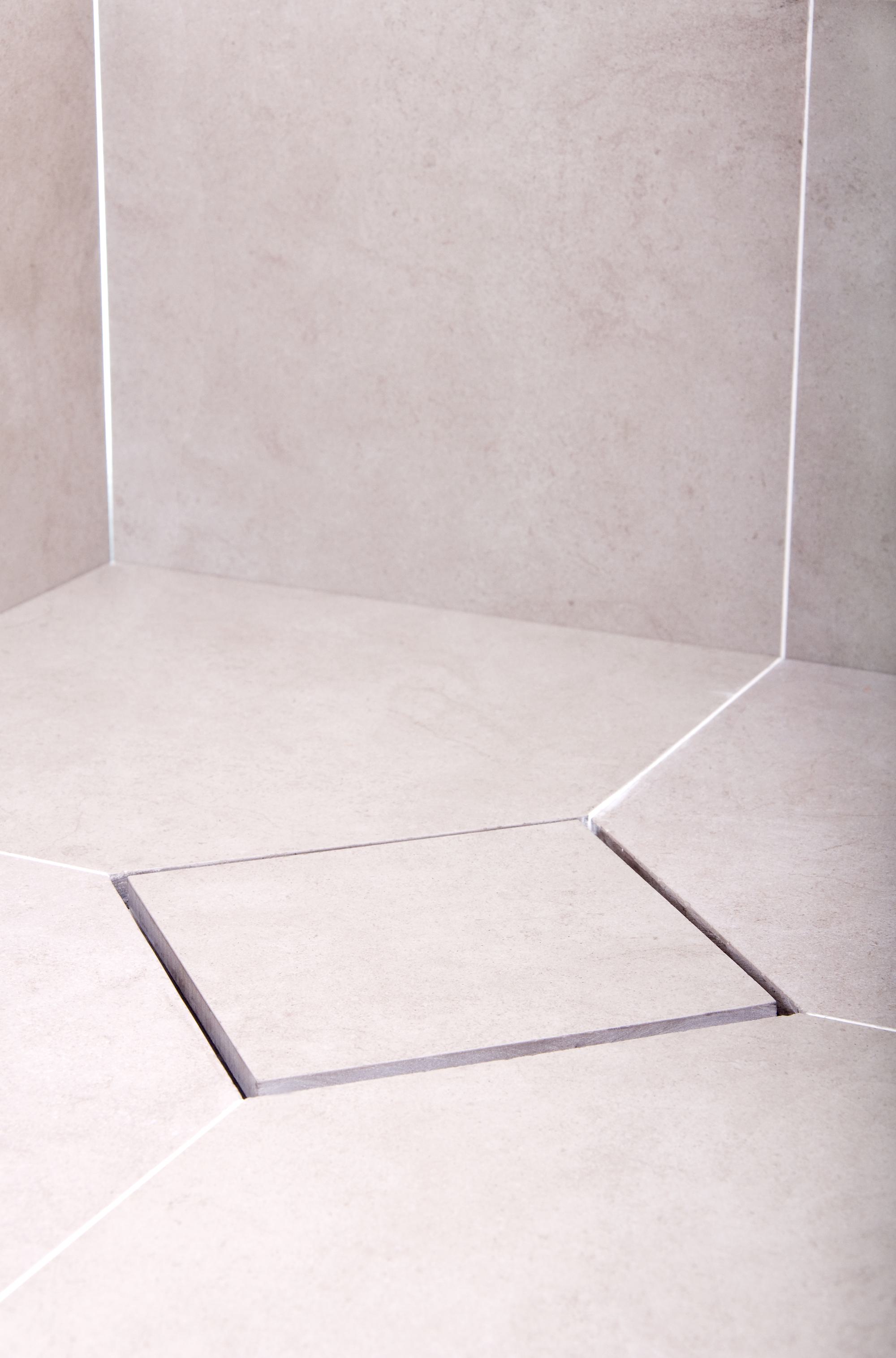

Tile-up Floor Drains SEE PRODUCTS TILE-UP

One of our most popular collections amongst interior designers, this collection enables you to use any tile to create a point drain cover with all of Jonite’s Floor Drain functionalities.

FTUS-148/158 tile-up trap
71110

FTUS-148/158

Component Tile-up Trap (Square)
Dimension 158W x 158L x 30mm(t)
FTUS-90/100 tile-up trap
71111

FTUS-90/100

Component Tile-up Trap (Shower Square)
Dimension 100W x 100L x 22mm(t)
Hinged Floor Drains SEE PRODUCTS HINGED

Do away with the hassle of handling of floor traps; our Hinged Collection is the perfect partner for applications that requires frequent access to the pipes for cleaning.

SHOW ALL HIDE PRODUCTS
FHS-125/200 hinged floor trap
72110

FHS-125/200

Component Hinged Trap (Large)
Dimension 200W x 200L x 30mm(t)
FHS125-200 hinged floor trap blank
72111

FHS-125/200 Blank

Component Hinged Trap Blank (Large)
Dimension 200W x 200L x 30mm(t)
FHS-125/200 hinged trap dome
72112

FHS-125/200 Dome

Component Hinged Trap Dome (Large)
Dimension 200W x 200L x 30(45)mm(t)
FHS-125/158 squared hinged floor trap
72113

FHS-125/158

Component Hinged Trap (Square)
Dimension 158W x 158L x 30mm(t)
FHS-125/158 hinged trap blank
72114

FHS-125/158 Blank

Component Hinged Trap Blank
Dimension 158W x 158L x 30mm(t)
FHS-125/158 hinged trap dome
72115

FHS-125/158 Dome

Component Hinged Trap Dome
Dimension 158W x 158L x 30(45)mm(t)
Classic Floor Drains SEE PRODUCTS CLASSIC

Retaining the features of conventional floor traps, the classic collection is exclusive with the use of Jonite stone, durable yet aesthetically pleasing. Available in 16 different standard colours.

SHOW ALL HIDE PRODUCTS
FCR-145/165 classic round floor trap
73110

FCR-145/165

Component Classic Round Trap
Dimension 165mm Dia. x 30mm(t)
FCSR-135/158 classic square floor trap with round cover
73111

FCSR-135/158

Component Classic Square Trap (with Round cover)
Dimension 158W x 158L x 30mm(t)
FCR90/100 classic round shower trap
73112

FCR90/100 Shower

Component Classic Shower Trap (Round)
Dimension 100mm Dia. x 25mm(t)
Modern Floor Drains SEE PRODUCTS MODERN

The modern collection of floor drains complement minimalist designs while retaining its functionality and durability.

SHOW ALL HIDE PRODUCTS
FMAS-135/158 modern americ square floor drain
74110

FMAS-135/158

Component Modern Americ Square
Dimension 158W x 158L x 30mm(t)
FMAR-145/165 modern americ round floor drain
74111

FMAR-145/165

Component Modern Americ Round
Dimension 165mm Dia. x 30mm(t)
FMSR-145/165 modern slotted floor drain
74112

FMSR-145/165

Component Modern Slotted
Dimension 165mm Dia. x 30mm(t)
Driveway Floor Drains SEE PRODUCTS DRIVEWAY

Created specifically for use in driveway drainage, this collection is available in 2 standard designs.

FHS-158-200HD driveway trap
75110

FHS-158/200HD

Component Driveway Trap (B125)
Dimension 200W x 200L x 45mm(t)
FHS-158/200HD driveway trap blank
75111

FHS-158/200HD Blank

Component Driveway Trap Blank (B125)
Dimension 200W x 200L x 45mm(t)

A Trusted Supplier of Bath and Shower Floor Drains

For the past 20 years, Jonite has become a leading supplier of drains and grates across the globe. Our portfolio of past work shows how our expert designers and engineers have crafted practical and innovative products for homes, apartments, condos, hotels, fitness centers and spas.

Today, many architecture, engineering and construction industries aim to reduce their ecological footprint. We’re proud to offer sustainable choices, with about 30% of our products containing recycled materials. We continue to look for more ways to create a positive environmental impact.

If you’re looking to pick your bathroom drains for a new build or refresh an existing space, our dedicated team is happy to answer your questions and work with you on a project. We’ll gain an understanding of your space and style preferences to give you tailored recommendations that suit your goals.

Read more Show less

CUSTOMIZED BATHROOM FLOOR DRAINS

Jonite stone color options
  • Custom color, design, size and texture
  • Custom outlets to accommodate different traps and strainers
  • Adapters to fit different pipe sizes
LEARN MORE

Contact Jonite to Order Your Modern Floor Drains

Choosing the right type of point drain system can provide efficient draining for your bathroom and easy maintenance over time. Make the right choice by choosing Jonite today.

Like what you see? Contact us to see how we can help you today.


Read more Show less

FAQ

Do I have to use my own tile for Jonite floor drains?

Not at all, only our Tile-Up collection requires a matching floor tile.

What type of tiles would you recommend for the Tile-Up collection?

We would recommend more robust tiles such as stone, homogeneous or granite.

Am I able to customize the color of my floor drains?

Yes, other than the Tile-Up collection which comes in default black, you can customize the colors for all our floor drains collections. All we need is a color sample of your floor tile for a color match. Our transparent step-by-step process will help you with all your customizing needs, but feel free to reach out to one of us at Jonite if you need help.

How strong are Jonite floor drains compared to competing products?

Jonite floor drains can sustain a compressive load of up to 2KN (200 kilograms).

Can I customize my own floor drain design?

Yes, you can. However, for small quantities, the tooling cost may be substantially high.

Are Jonite floor drains slip resistant?

Jonite floor drains are slip resistant. We have conducted Pendulum and Ramp tests on our products to make sure they meet industry standards for slip resistance. With a class V on the Pendulum test and an R10 on the Ramp test, Jonite can handle most locations and applications.

Are Jonite’s products sustainable?

Jonite commits to environmentally sustainable practices. We actively manage our energy, water, and waste with the future in mind. We use at least 30% recycled aggregates, which reduces carbon emissions by up to 80%.

Jonite products are also Singapore Green Building Product (SGBP) certified (4 ticks, leader). This means that you can score additional points under the Functional Systems Criteria (Flooring, Ceiling, Roof, External Wall, Internal Wall and Door systems) and/or Singular Sustainable Products outside of Functional Systems Criteria. This ensures that sustainability is integrated throughout the design and manufacturing process of green building products.
