High Performance Trench Grates

COLLECTIONS
HIGH PERFORMANCE

Specially designed for heavy loading applications such as car-park entrances, hard-standing areas, driveways and kerb sides. L-Trimmers are recommended to ensure a flat and level seating of gratings.

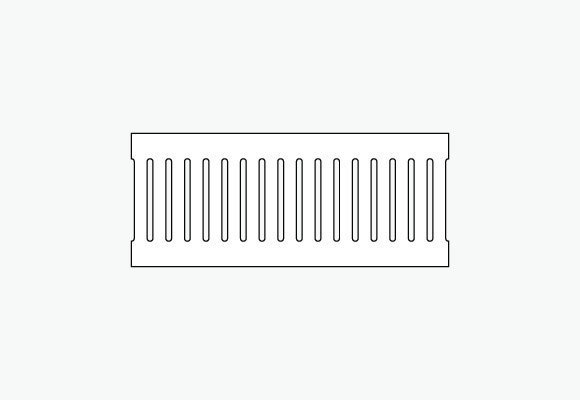

C1-210H35EHD high performance trench grate
32110

C1-210H35EHD

Load class C250
Drain width 128 to 150mm
Dimension 210W x 500L x 35mm(t)
C1-210H35EHD high performance trench grate
32111

C1-210H50CHD

Load class D400
Drain width 128 to 150mm
Dimension 210W x 500L x 50mm(t)

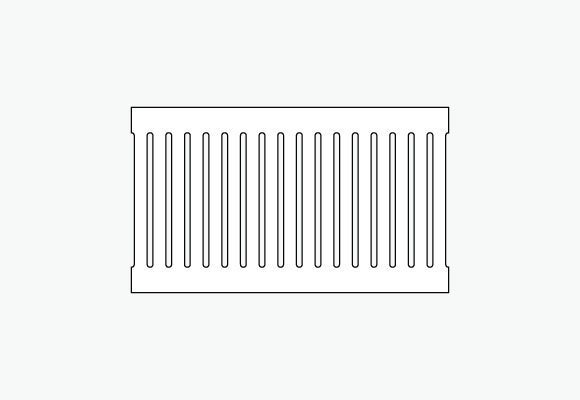

C2-292H35EHD high performance trench grate
32112

C2-292H35EHD

Load class C250
Drain width 210 to 230mm
Dimension 292W x 500L x 35mm(t)
C2-292H35EHD high performance trench grate
32113

C2-292H50CHD

Load class D400
Drain width 210 to 230mm
Dimension 292W x 500L x 50mm(t)

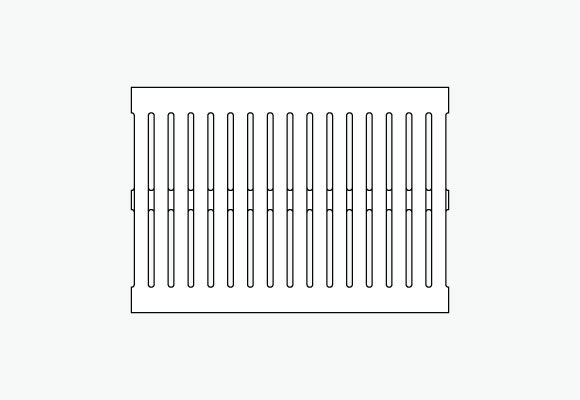

C3-355H50EHD high performance trench grate
32114

C3-355H50EHD

Load class C250
Drain width 273 to 285mm
Dimension 355W x 500L x 50mm(t)
C3-355H50EHD high performance trench grate
32115

C3-355H75CHD

Load class D400
Drain width 273 to 285mm
Dimension 355W x 500L x 75mm(t)
C4-435H70EHD high performance trench grate
32116

C4-435H70EHD

Load class C250
Drain width 345 to 365mm
Dimension 435W x 420L x 70mm(t)
C4-435H70EHD high performance trench grate
32125

C4-435H75CHD

Load class D400
Drain width 345 to 365mm
Dimension 435W x 420L x 75mm(t)

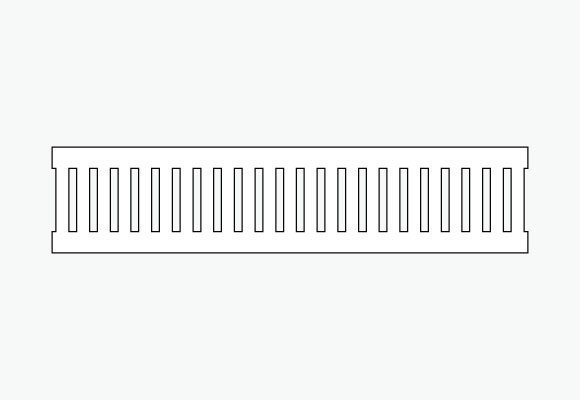

D1-167H35EHD high performance trench grate
32117

D1-167H35EHD

Load class C250
Drain width 100 to 117mm
Dimension 167W x 750L x 35mm(t)
D1-167H35EHD high performance trench grate
32118

D1-167H50CHD

Load class D400
Drain width 100 to 117mm
Dimension 167W x 750L x 50mm(t)

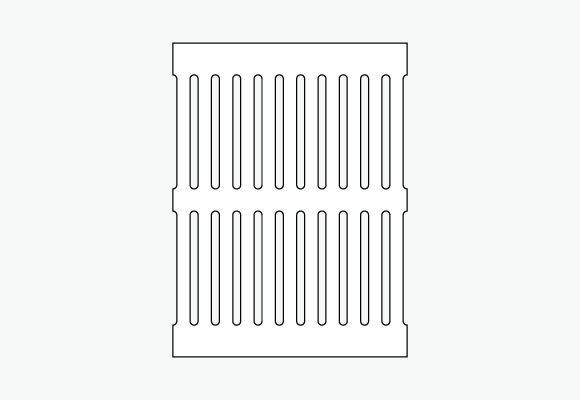

D3-495H75EHD high performance trench grate
32121

D3-495H75EHD

Load class C250
Drain width 395 to 425mm
Dimension 495W x 370L x 75mm(t)
D3-495H75EHD high performance trench grate
32122

D3-495H75CHD

Load class D400
Drain width 395 to 425mm
Dimension 495W x 370L x 75mm(t)

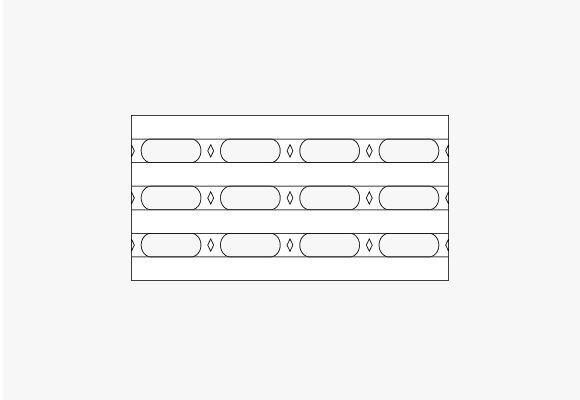

BW1-260H50EHD high performance trench grate
32123

BW1-260H50EHD

Load class C250
Drain width 200mm
Dimension 260W x 500L x 50mm(t)

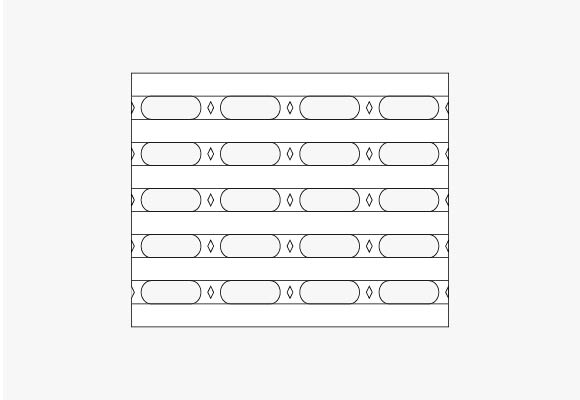

BW2-400H50EHD high performance trench grate
32124

BW2-400H50EHD

Load class C250
Drain width 330mm
Dimension 400W x 500L x 50mm(t)

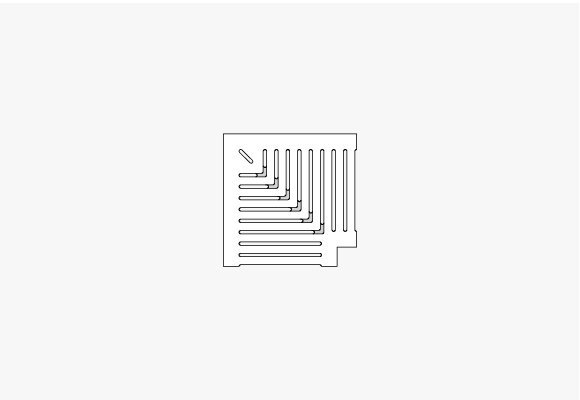

Composite stone reinforced Jonite standard trench channel grate shop drawing
34112C

90° C1-H35EHD

Load class C250
Suitable for Standard C1-210H35EHD

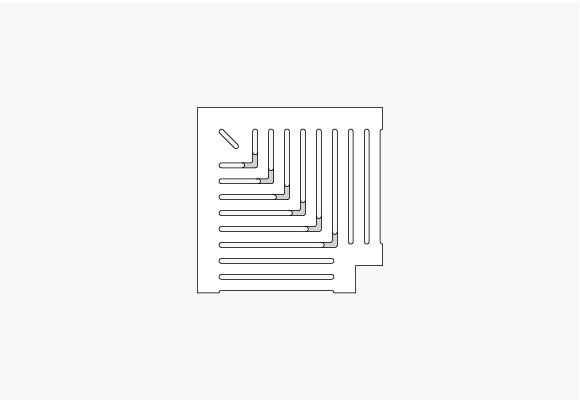

Standard Jonite reinforced stone trench grates
34115C

90° C2-H35EHD

Load class C250
Suitable for Standard C2-292H35EHD

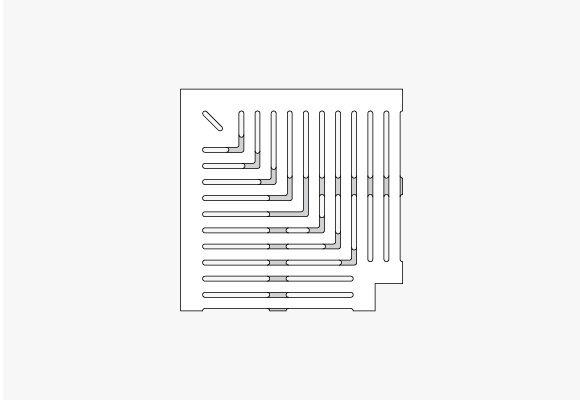

Reinforced stone channel trench grates Jonite (corner)
34118C

90° C3-H50EHD

Load class C250
Suitable for Standard C3-355H50EHD

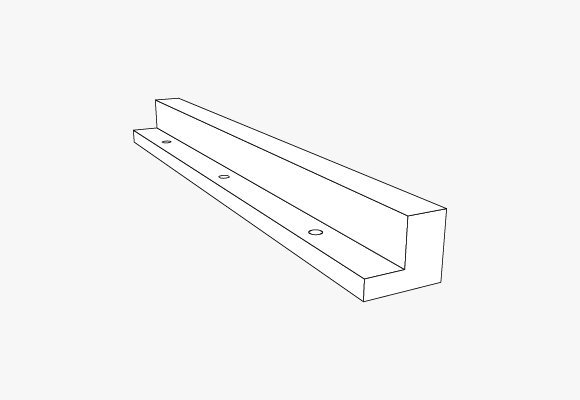

L-trimmer-35HD/EHD
34122C

L-TRIMMER-35HD/EHD

Dimension 60W x 500L x 50mm(t)
L-trimmer-50EHD/CHD
34123C

L-TRIMMER-50EHD/CHD

Dimension 65W x 500L x 65mm(t)

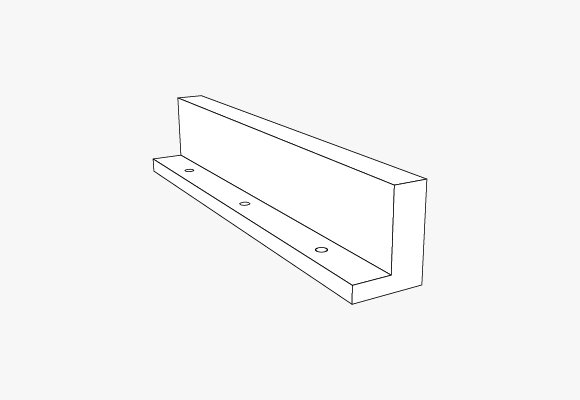

L-trimmer-70EHD/CHD
34124C

L-TRIMMER-70EHD/CHD

Dimension 65W x 420L x 85mm(t)

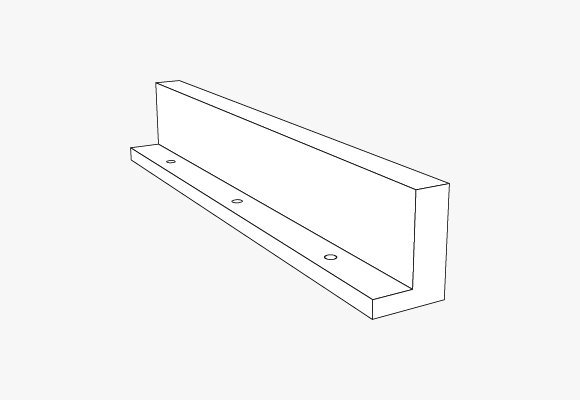

L-trimmer-75EHD/CHD
34125C

L-TRIMMER-75EHD/CHD

Dimension 65W x 500L x 90mm(t)

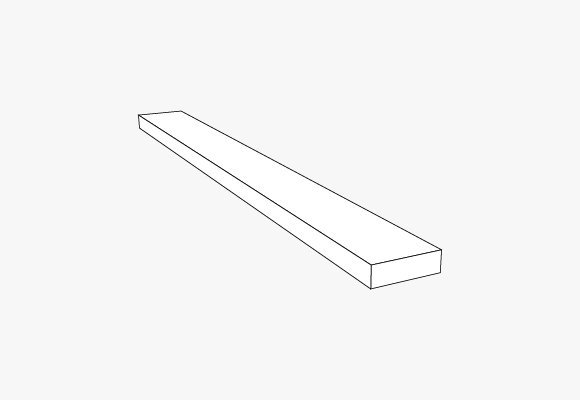

TS-50-ED/EHD tile strip
34128C

TS-50-HD/EHD (Tile-Strip)

Dimension 50W x 500L x 15mm(t)
