Sump Cover
HARDSCAPE

Sump Covers

Add the natural modern stone aesthetic to your designs for point drainage systems, intermediaries of long open-channel drainage as well as kerb-side drainage. Our reinforced stone technology ensures that you can incorporate elegant stone into your design while ensuring load strength.

  • Low heat absorption
  • Rust and corrosion resistant
  • BS EN 124:2015 & 1433:2002 compliant
  • Dielectric properties with excellent electric insulator
  • Flexible sizes with the use of Jonite splines to form huge covers

Loading Specifications

Class A15 - Class D400
  • Some Jonite products are built for pedestrian usage
  • Jonite incorporates ADA-certified grates in our range of products for greater accessibility
  • Jonite stone reinforced grates and panels with loading class specifications for vehicles class B2
  • Jonite's range of products also include grates that can withstand Class C vehicle loads
  • Jonite produces a range of high loading-performance grates and panels that can withstand class Dvehicular loads

GENERAL SPECIFICATIONS

The humble sump cover, or maintenance hole cover, first began life in the Roman Empire as slabs of stone or wood placed over point drainage systems that allowed maintenance workers access to covered drains carrying wastewater and sewage.

This omnipresent sump cover is the basis of inspiration for Jonite’s designs, in which we aim to showcase the beauty of stone with modern technology and excellent craftsmanship.

Today, point drainage systems are found everywhere in the streets, commercial factory areas, residential areas, and more. Point drains require covers to prevent environmental contamination and prevent accidental falls. With Jonite point drain covers and sump grates, architects no longer face the problem of having to place these openings in inconspicuous areas, but instead can use these catch basin grates as an additional design element.

Lower urban temperatures by choosing Jonite sump covers with low heat absorption compared to traditional metal or cast iron grates. Traditional metal or cast iron grates absorb heat during the day, which can create the urban heat island effect through the raised temperature for surrounding buildings. Jonite sump covers were designed to combat the effects of urban warming, which is rapidly becoming a severe issue for cities in the changing climate.

The unique material properties of Jonite products prevent rust and corrosion such that they are equally suited to last a lifetime for both indoor and outdoor applications. It is also theft-resistant, as Jonite hardscape products do not pose any value for scrap due to their stone material integrity.

Jonite catch basin grates and sump grates come in a wide range of standard sizes that can be assembled with the addition of Jonite splines to form huge covers. This feature gives you the added edge of cost-effectiveness and sustainability. For multiple sump covers, a metal sub-frame may be used. Optional Jonite Trimmer Frames can be used to provide aesthetic flair and high-performance support for the heavy-duty channel and sump grates.

Are you interested in finding out more? Contact us to see how our sump grates can fit into your designs.

Read more Show less
Ivory White Ivory White
Wacky White Wacky White
Rosy Beige Rosy Beige
Desert Beige Desert Beige
Champagne Yellow Champagne Yellow
Terracotta Red Terracotta Red
Teak Brown Teak Brown
Mocca Brown Mocca Brown
Granite Grey Granite Grey
Ash Grey Ash Grey
Steel Grey Steel Grey
Slate Grey Slate Grey
Bamboo Green Bamboo Green
Smoky Green Smoky Green
Charcoal Black Charcoal Black
Ebony Black Ebony Black

COLLECTIONS

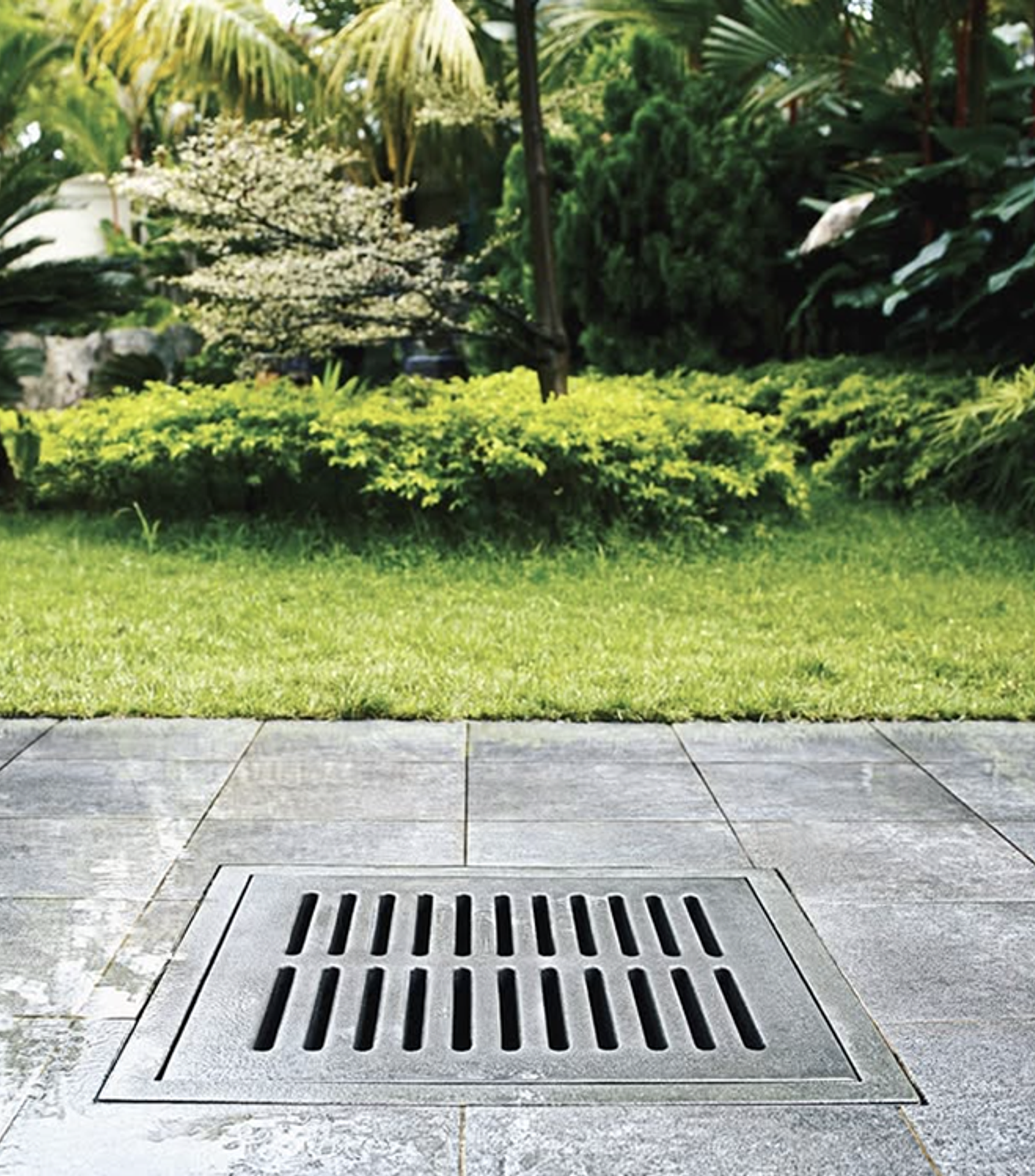

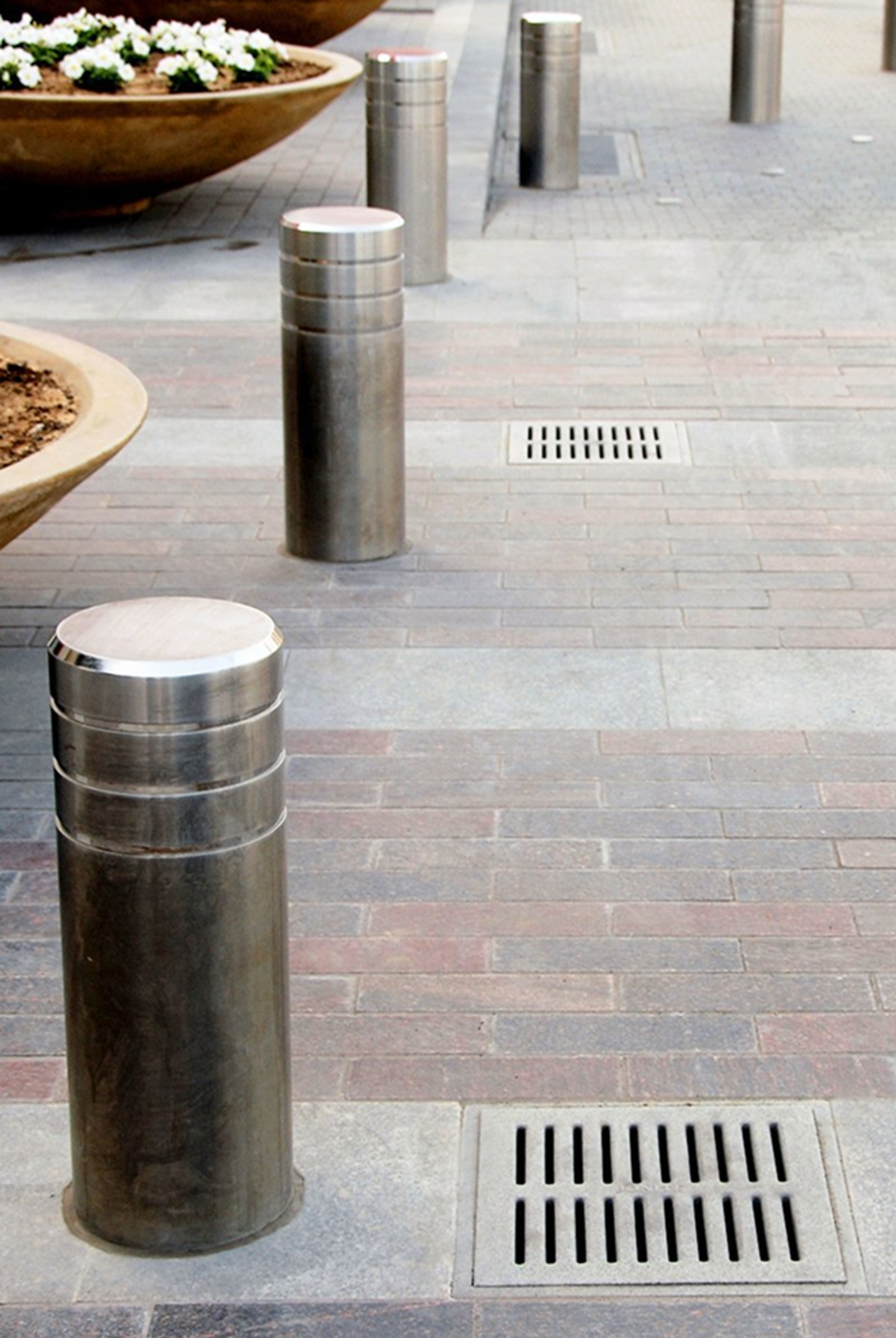

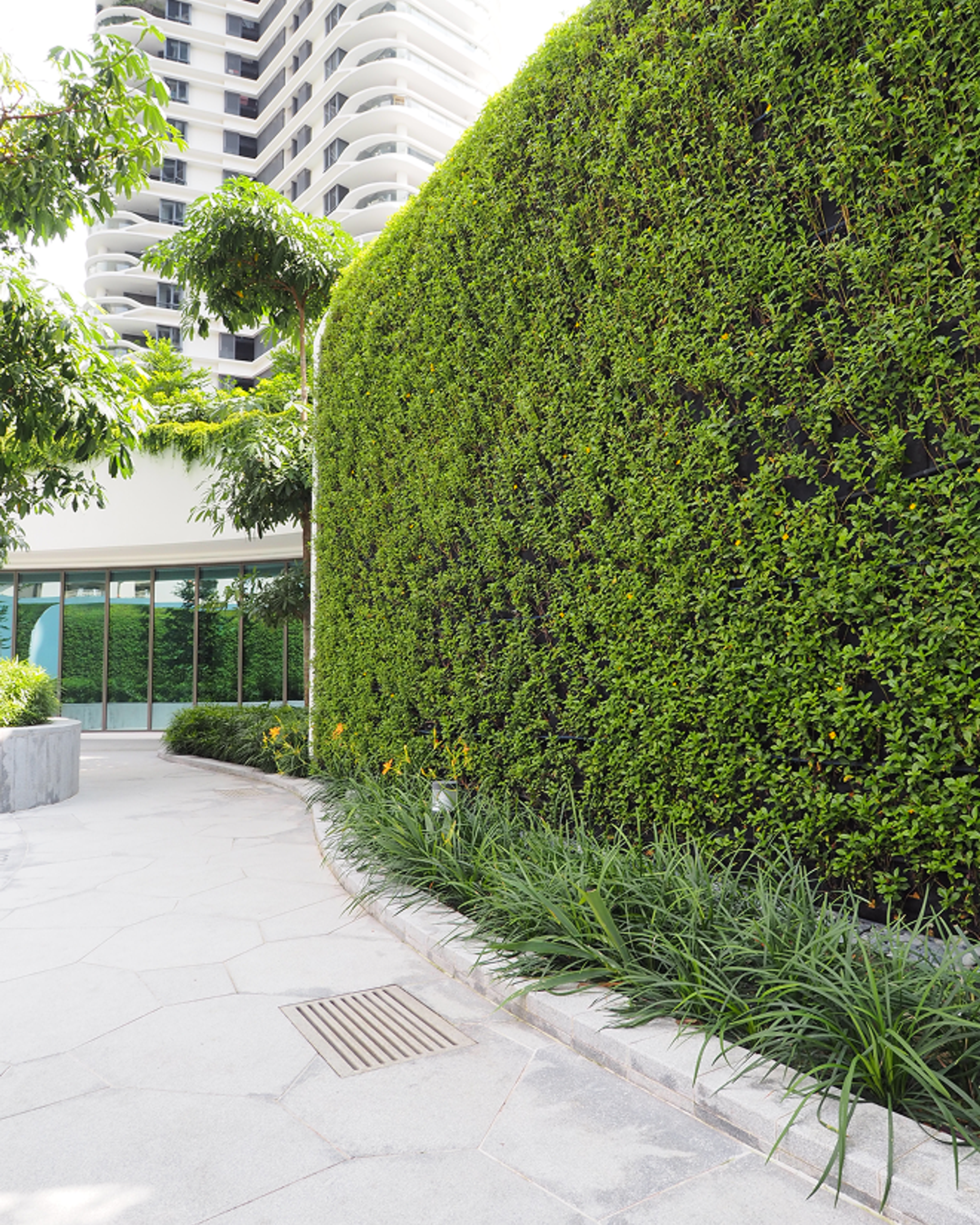

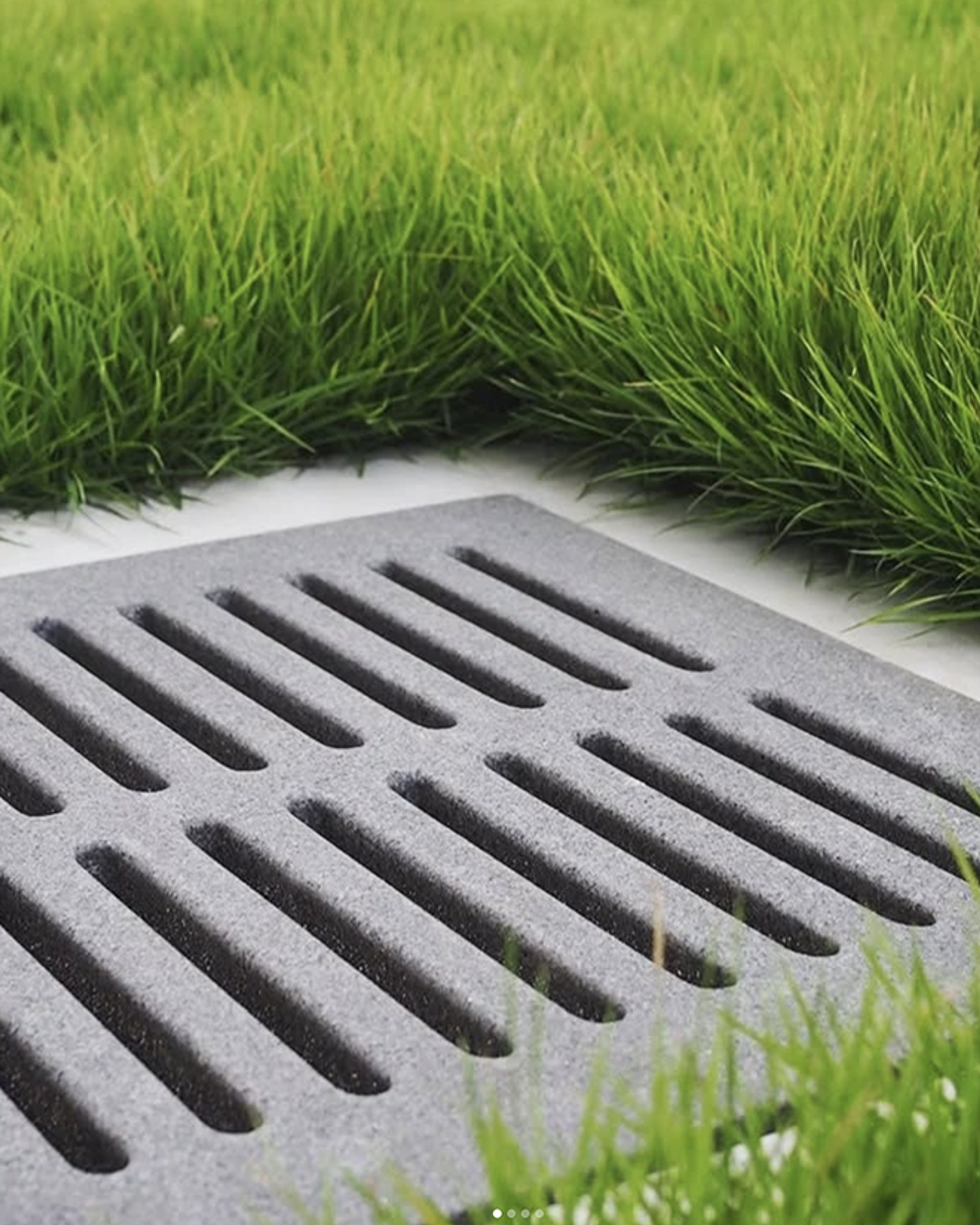

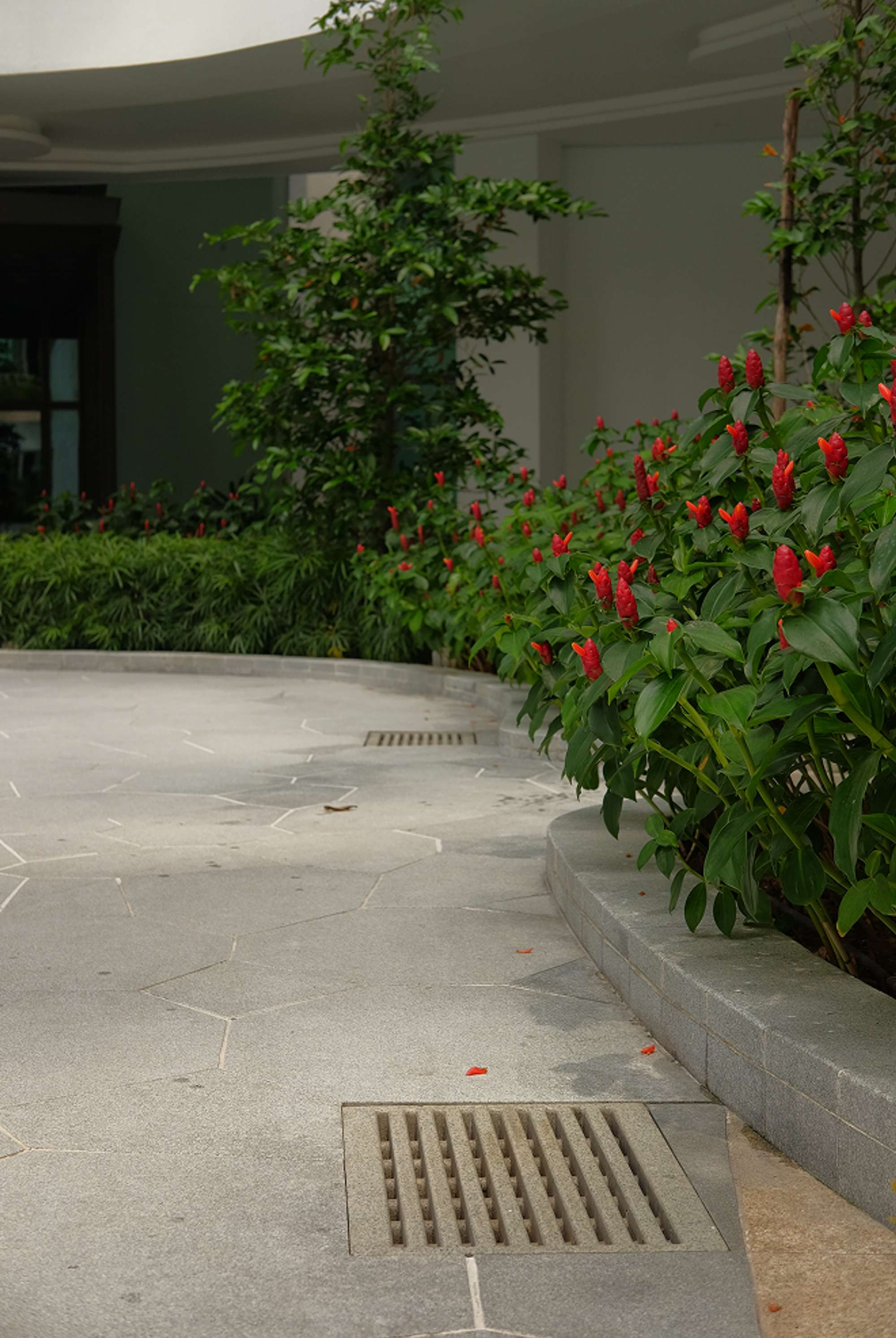

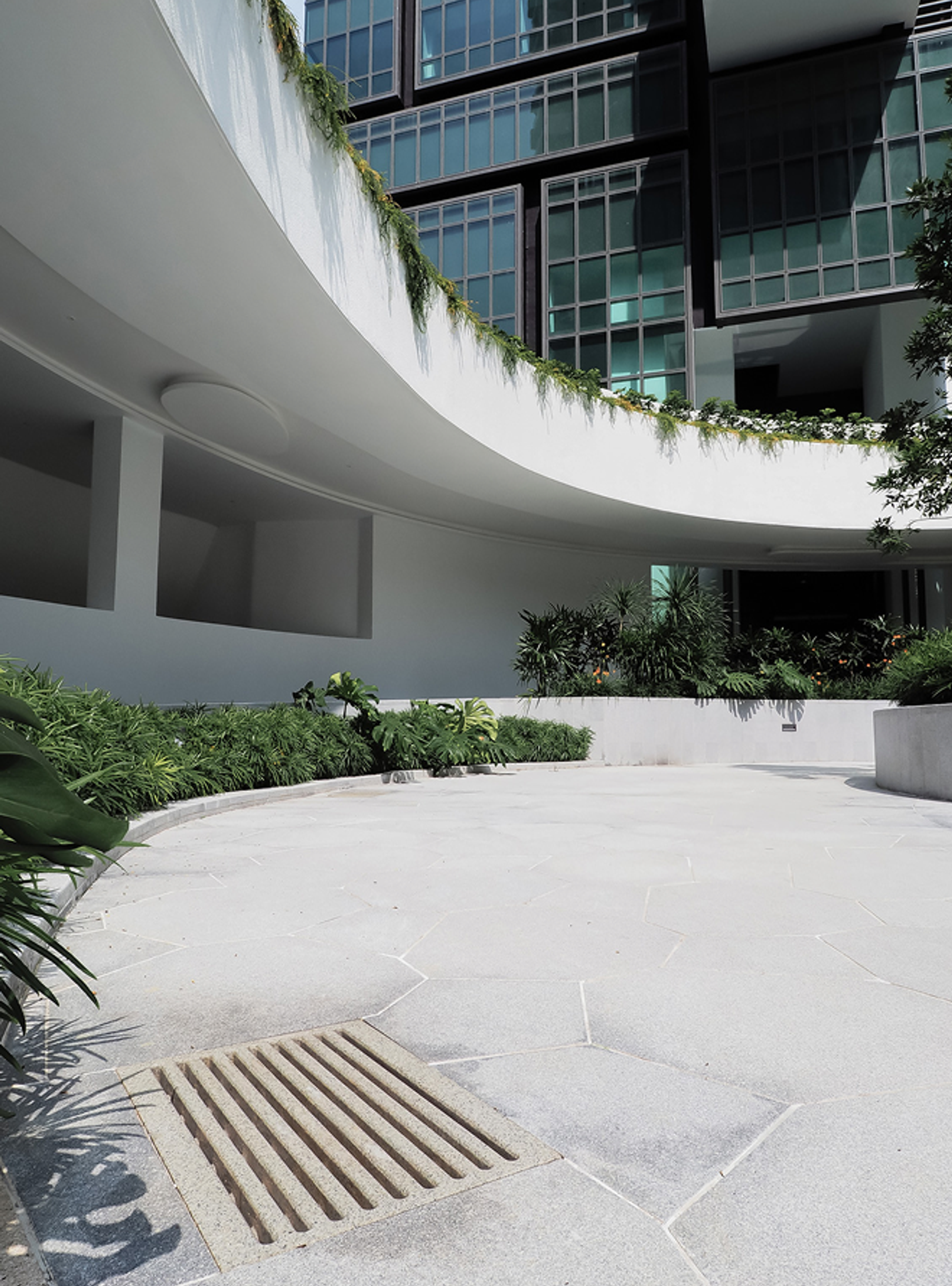

Slotted sump covers SEE PRODUCTS SLOTTED

Sump covers with classic slotted designs in a variety of standard sizes and shapes for quick matches to your designs.

SHOW ALL HIDE PRODUCTS
51110

SC300-300H25LD

Load class A15
Drain width 250 x 250mm (Pit Size)
Dimension 300W x 300L x 25mm(t)
51111

SC300-300H35HD

Load class B125
Drain width 230 x 230mm (Pit Size)
Dimension 300W x 300L x 35mm(t)
51112

SC300-600H25LD

Load class A15
Drain width 250 x 550mm (Pit Size)
Dimension 300W x 600L x 25mm(t)
51113

SC300-600H35HD

Load class B125
Drain width 240 x 540mm (Pit Size)
Dimension 300W x 600L x 35mm(t)
51120

SC400-400H35LD

Load class A15
Drain width 350 x 350mm (Pit Size)
Dimension 400W x 400L x 35mm(t)
51121

SC400-400H35HD

Load class B125
Drain width 340 x 340mm (Pit Size)
Dimension 400W x 400L x 35mm(t)
51122

SC400-500H35LD

Load class A15
Drain width 350 x 450mm (Pit Size)
Dimension 400W x 500L x 35mm(t)
51123

SC400-500H35HD

Load class B125
Drain width 340 x 440mm (Pit Size)
Dimension 400W x 500L x 35mm(t)
51124

SC420-625H35LD

Load class A15
Drain width 370 x 575mm (Pit Size)
Dimension 420W x 625L x 35mm(t)
51125

SC420-625H35HD

Load class B125
Drain width 360 x 565mm (Pit Size)
Dimension 420W x 625L x 35mm(t)
51126

SC435-873H35LD

Load class A15
Drain width 385 x 823mm (Pit Size)
Dimension 435W x 873L x 35mm(t)
51127

SC435-873H35HD

Load class B125
Drain width 375 x 813mm (Pit Size)
Dimension 435W x 873L x 35mm(t)
51128

SC500-500H35LD

Load class A15
Drain width 450 x 450mm (Pit Size)
Dimension 500W x 500L x 35mm(t)
51129

SC500-500H35HD

Load class B125
Drain width 440 x 440mm (Pit Size)
Dimension 500W x 500L x 35mm(t)
51130

SC550-550H35LD

Load class A15
Drain width 500 x 500mm (Pit Size)
Dimension 550W x 550L x 35mm(t)
Sump Cover
51131

SC550-550H50HD

Load class B125
Drain width 490 x 490mm (Pit Size)
Dimension 550W x 550L x 50mm(t)
53110C

TRF300-300H25

Suitable for SC300-300H25LD
53111C

TRF300-300H35

Suitable for SC300-300H35HD
53112C

TRF300-600H25

Suitable for SC300-600H25LD
53113C

TRF300-600H35

Suitable for SC300-600H35HD
Jonite Reinforced Stone Basin Grates Slotted shop drawing
53114C

TRF400-400H35

Suitable for SC400-400H35LD / HD
Jonite Reinforced Stone Basin Grates Slotted shop drawing
53115C

TRF500-500H35

Suitable for SC500-500H35LD / HD
High performance sump covers SEE PRODUCTS HIGH PERFORMANCE

Reinforced stone sump covers, specifically created to withstand heavy loads and vehicular loading. Available in various sizes.

SHOW ALL HIDE PRODUCTS
52120

SSC300-600H35EHD

Load class C250
Drain width 230 x 530mm (Pit Size)
Dimension 300W x 600L x 35mm(t)
52121

SSC300-600H50CHD

Load class D400
Drain width 230 x 530mm (Pit Size)
Dimension 300W x 600L x 50mm(t)
Grate product
52110

SSC350-700H50EHD

Load class C250
Drain width 280 x 630mm (Pit Size)
Dimension 350W x 700L x 50mm(t)
52117

SSC350-700H75CHD

Load class D400
Drain width 280 x 630mm (Pit Size)
Dimension 350W x 700Lx 75mm(t)
52122

SSC400-400H50EHD

Load class C250
Drain width 340 x 340mm (Pit Size)
Dimension 400W x 400L x 50mm(t)
52123

SSC400-400H75CHD

Load class D400
Drain width 330 x 330mm (Pit Size)
Dimension 400W x 400L x 75mm(t)
52118

SSC500-500H50EHD

Load class C250
Drain width 430 x 430mm (Pit Size)
Dimension 500W x 500L x 50mm(t)
Sump Cover
52119

SSC500-500H75CHD

Load class D400
Drain width 430 x 430mm (Pit Size)
Dimension 500W x 500L x 75mm(t)
Basin grates SEE PRODUCTS BASIN GRATES

Perfectly shaped to be compatible with the most common catch basins in the USA, Jonite reinforced stone Basin Grates can be matched to other Jonite products for a seamless finish through your design.

SHOW ALL HIDE PRODUCTS
Avant garde reinforced stone sump cover basin grate Jonite Chiselled 300
U31110

BG-CHISELED-300

Load class A15
Dimension 300W x 300L x 29/32mm(t)
Sump Cover
U31111

BG-CROSS-STITCH-300

Load class A15
Dimension 300W x 300L x 29mm(t)
Jonite Reinforced Stone Basin Grates Keyholes 300 shop drawing
U31112

BG-KEYHOLES-300

Load class A15
Dimension 300W x 300L x 29/32mm(t)
Jonite Reinforced Stone Basin Grates Interlace 300 shop drawing
U31113

BG-INTERLACE-300

Load class A15
Dimension 300W x 300L x 29/32mm(t)
Jonite Reinforced Stone Basin Grates Palm 300 shop drawing
U31114

BG-PALM-300

Load class A15
Dimension 300W x 300L x 29/32mm(t)
Pebbles grate
U31115

BG-PEBBLES-300

Load class 6KN
Dimension 300W x 300L x 29mm(t)
U31116

BG-SQUARE-SLOTS-300

Load class A15
Dimension 300W x 300L x 29mm(t)

OPTIONAL CUSTOMISATION

A variety of decorative stone gratings in various standard applications.
  • Custom color, design, size and texture
  • Trimmers frames for added aesthetics
  • Design and fabrication of metal support frames for large sumps
  • Lockable grates
  • Heel proof grates
  • Hinged access
LEARN MORE
